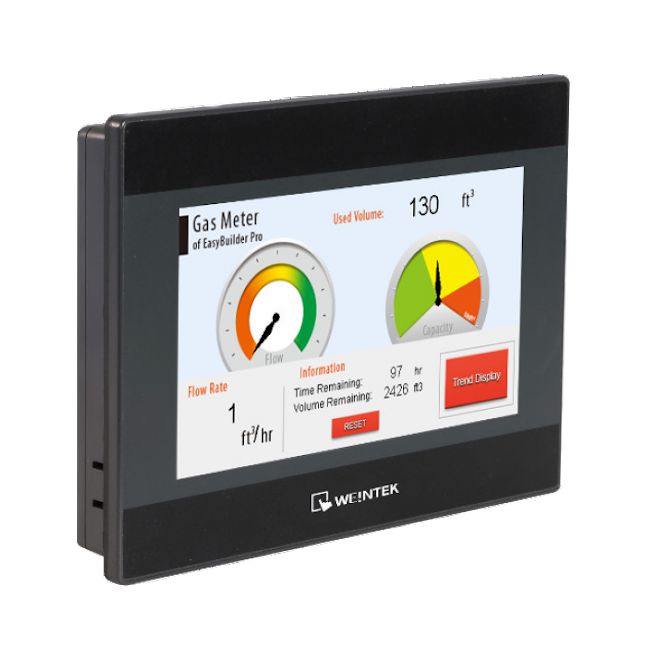

HMI Weintek MT8071iP 7 inch

Mã sản phẩm: 37667423

Liên hệ

SKU: MT8071iP
Hãng sản xuất: Weintek
Chất lượng: Mới 100%
Bảo hành: Chính hãng
Chứng từ: Hóa đơn VAT

Danh mục: Màn hình HMI

Liên hệ báo giá

Mô tả sản phẩm

Model	MT8071iP
Display	7” TFT LCD
Resolution	800 x 480
Brightness (cd/m2)	300
Contrast Ratio	500:01:00
Backlight Type	LED
Backlight Life Time	>30,000 hrs.
Colors	16M
LCD Viewing Angle (T/B/L/R)	70/50/70/70
Touch Panel
Type	4-wire Resistive Type
Accuracy	Active Area Length(X)±2%, Width(Y)±2%
Memory
Flash	128 MB
RAM	128 MB
Processor	32 Bits RISC Cortex-A8 600MHz
I/O Port
USB Host	USB 2.0 x 1
USB Client	USB 2.0 x 1 (Micro USB)
Ethernet	N/A
COM Port	COM1: RS-232, COM2: RS-485 2W/4W
RS-485 Dual Isolation	N/A
RTC	Built-in
Power
Input Power	24±20% VDC
Power Consumption	500mA@24VDC
Power Isolator	Built-in
Voltage Resistance	500VAC (1 min.)
Isolation Resistance	Exceed 50MΩ at 500VDC
Vibration Endurance	10 to 25Hz (X, Y, Z direction 2G 30 minutes)
Specification
PCB Coating	N/A
Enclosure	Plastic
Dimensions WxHxD	200.4 x 146.5 x 34 mm
Panel Cutout	192 x 138 mm
Weight	Approx. 0.52 kg
Mount	Panel mount
Protection Structure	NEMA4 / IP65 Compliant Front Panel
Storage Temperature	-20° ~ 60°C (-4° ~ 140°F)
Environment
Operating Temperature	0° ~ 50°C (32° ~ 122°F)
Relative Humidity	10% ~ 90% (non-condensing)
Certificate
CE	CE marked
Software	EasyBuilder Pro

Ứng dụng:
Sử dụng làm giao diện giao tiếp với:
PLC Mitsubishi: FX1S, FX1N, FX3SA, FX3S, FX3G, FX3UC, FX3U …
PLC OMRON: CP1E-N, CP1L, CP1H + CP1W-CIF01/CIF11 …
PLC Siemens
Qua cổng RS-485: S7-200 CPU222, CPU224, CPU224CN, CPU224XP, CPU226, CPU226CN …
Qua cổng Ethernet: S7-1200, S7-1214C, S7-1215C …
PLC Delta: DVP
PLC Panasonic: FP0, FPG, FPX …
